IRIS

Application areas: security monitoring equipment, monitors, precision instruments

item Number	iRIS Voltage	iRIS Resistance	Max. effective aperture	Voltage Range	Neutral Density	Glass Thickness
VIRIS41	Start 3.3V Close 0.5V	Drive 190±10%Ω Deboost 855±10%Ω	Φ7.8 mm	5V Max.	1	/

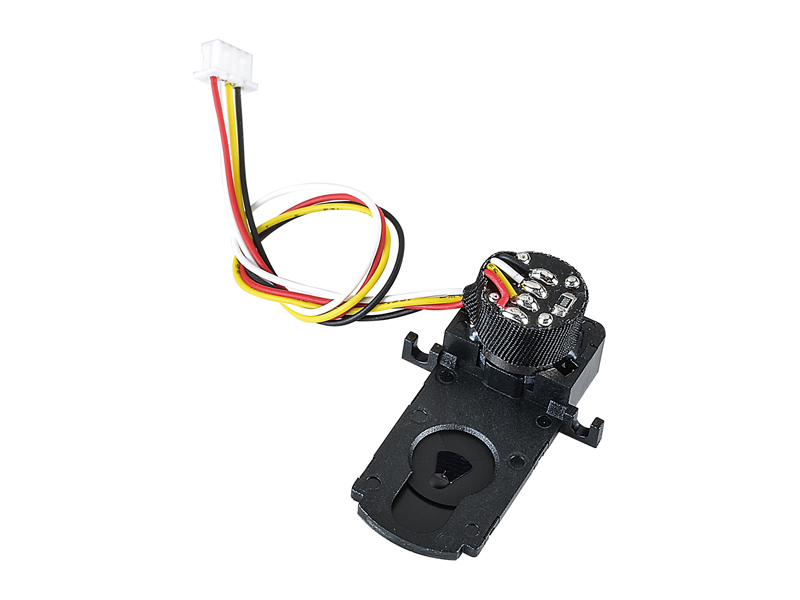

VIRIS26	Start 3.3V Close 0.5V	Drive 190±10%Ω Deboost 855±10%Ω	Φ10 mm	5V Max.	1	/

Application areas: security monitoring equipment, monitors, precision instruments

item Number	IRIS Voltage	IRIS Resistance	Max. effective aperture	Voltage Range	Neutral Density	Glass Thickness

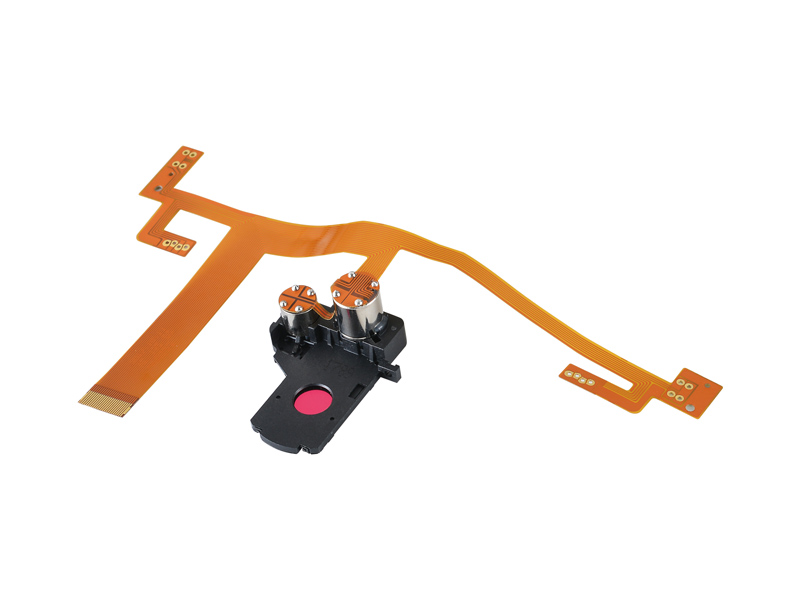

VIRIS23	Start 3.3V Close 0.5V Ripple 0.35V Max	Drive 190±10%Ω Deboost 465±10%Ω	Φ8.0 mm	5V Max.	1	0.145

Application areas: security monitoring equipment, monitors, precision instruments

Item Number	Rated test conditions	IRIS Resistance	Max. effective aperture	IR Voltage	Voltage Range	IR Resistance	Glass Thickness	Qty. of Glass

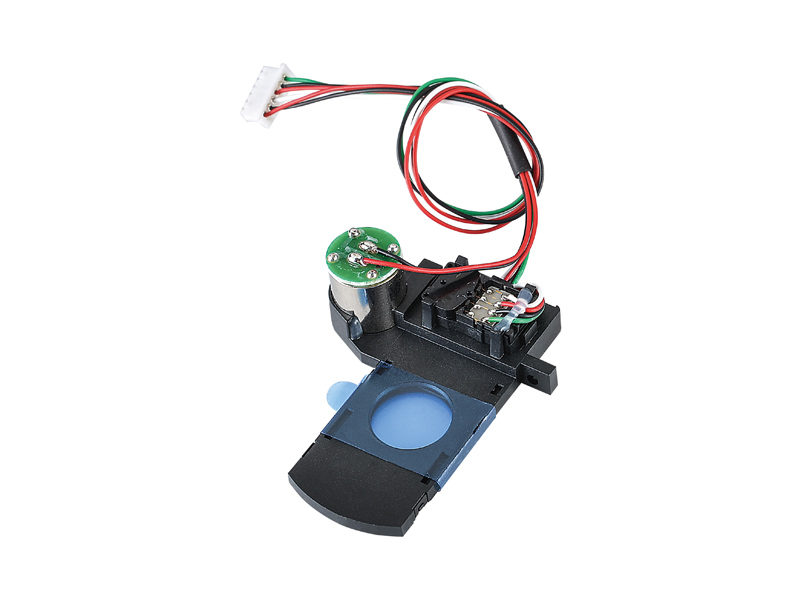

VPIRIS13	2.6-3.8V160PPS	28.5±10% Ω	Φ10.5 mm	2.8V	5V Max.	55±10% Ω	0.21	2

Application areas: security monitoring equipment, monitors, precision instruments

Item Number	Rated test conditions	IRIS Resistance	Max. effective aperture	IR Voltage	Voltage Range	IR Resistance	Glass Thickness	Qty. of Glass

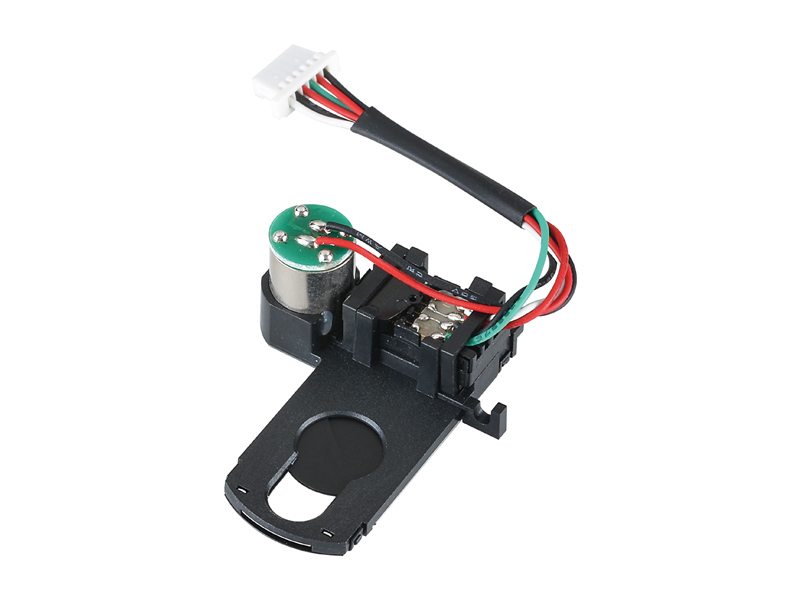

VPIRIS23	2.6-3.8V 160PPS	28.5 ±10% Ω	Φ7.0 mm	3.5 V	6V Max.	100 ±10% Ω	0.21	2

Application areas: security monitoring equipment, monitors, precision instruments

Item Number	Rated test conditions	IRIS Resistance	Max. effective aperture	IR Voltage	Voltage Range	IR Resistance	Glass Thickness	Qty. of Glass

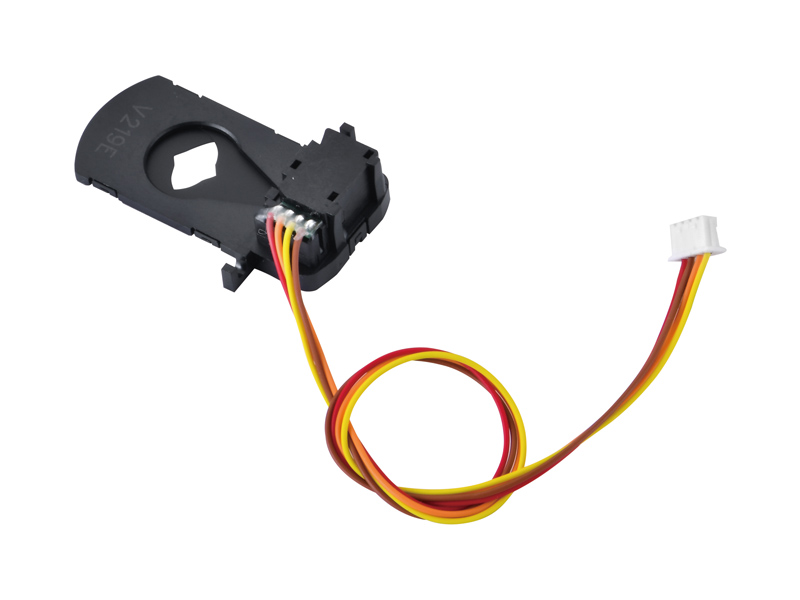

VPIRIS43	2.6-3.8V 160PPS	28.5±10% Ω	?9.7 mm	/	5V MAX.	/	/	/
